Product Summary
The LTC3411EMS#TRPBF is a constant frequency, synchronous, step- down DC/DC converter. Intended for medium power applications, the LTC3411EMS#TRPBF operates from a 2.63V to 5.5V input voltage range and has a user configurable operating frequency up to 4MHz, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. The output voltage is adjustable from 0.8V to 5V. Internal sychronous 0.11Ω power switches with 1.6A peak current ratings provide high efficiency. The LTC3411EMS#TRPBF’s current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors. The applications of the LTC3411EMS#TRPBF include Notebook Computers, Digital Cameras, Cellular Phones, Handheld Instruments and Board Mounted Power Supplies.
Parametrics
LTC3411EMS#TRPBF absolute maximum ratings: (1)PVIN, SVIN Voltages: –0.3V to 6V; (2)VFB, ITH, SHDN/RT Voltages: –0.3V to (VIN + 0.3V); (3)SYNC/MODE Voltage: –0.3V to (VIN + 0.3V); (4)SW Voltage: –0.3V to (VIN + 0.3V); (5)PGOOD Voltage:–0.3V to 6V; (6)Operating Ambient Temperature Range: –40℃ to 85℃; (7)Junction Temperature: 125℃; (8)Storage Temperature Range: –65℃ to 125℃; (9)Lead Temperature (Soldering, 10 sec: 300℃.
Features
LTC3411EMS#TRPBF features: (1)Small 10-Lead MSOP or DFN Package; (2)Uses Tiny Capacitors and Inductor; (3)High Frequency Operation: Up to 4MHz; (4)High Switch Current: 1.6A; (5)Low RDS(ON) Internal Switches: 0.110Ω; (6)High Efficiency: Up to 95%; (7)Stable with Ceramic Capacitors; (8)Current Mode Operation for Excellent Line and Load Transient Response; (9)Short-Circuit Protected; (10)Low Dropout Operation: 100% Duty Cycle; (11)Low Shutdown Current: IQ ≤ 1μA; (12)Low Quiescent Current: 60μA; (13)Output Voltages from 0.8V to 5V; (14)Selectable Burst Mode Operation; (15)Sychronizable to External Clock.

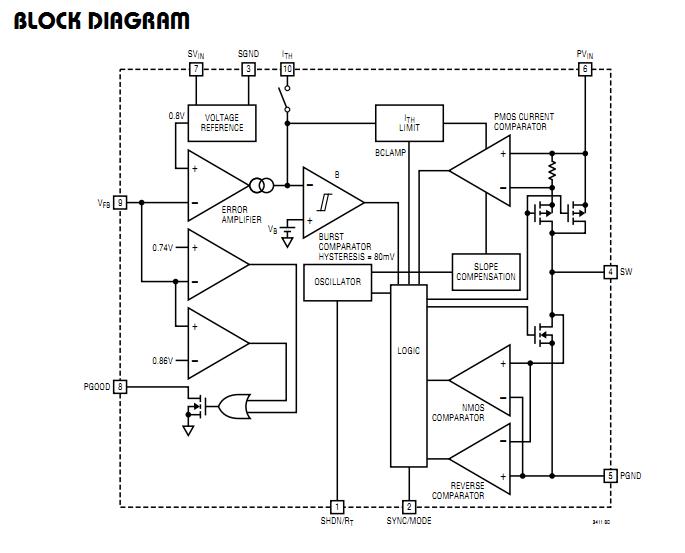

Diagrams
