Product Summary

The OP77AJ/883 is a precision op amp. The OP77AJ/883’s outstanding gain of 10000000 or more is maintained over the full ±10V output range. This exceptional gain-linearity eliminates incorrectable system nonlinearities common in previous monolithic op amps, and provides superior performance in high closed-loop-gain applications.

Parametrics

OP77AJ/883 absolute maximum ratings: (1)supply voltage: ±22V; (2)differential input voltage: ±30V; (3)input voltage: ±22V; (4)output short-circuit duration: indefinite; (5)storage temperature range: -65 to 150℃; (6)operating temperature range: -55 to 125℃; (7)junction temperature, Tj: -65 to 150℃; (8)lead temperature: 300℃.

Features

OP77AJ/883 features: (1)outstanding gain linearity; (2)ultra high gain: 500V/mV min; (3)low Vos over tempeature: 60μV max; (4)excellent TCVos: 0.3μV/℃ max; (5)high PSRR: 3μV/V max; (6)low power consumption: 60mW max; (7)fits OP-72, 725, 108A/308A, 741 sockets; (8)available in Die Form.

Diagrams

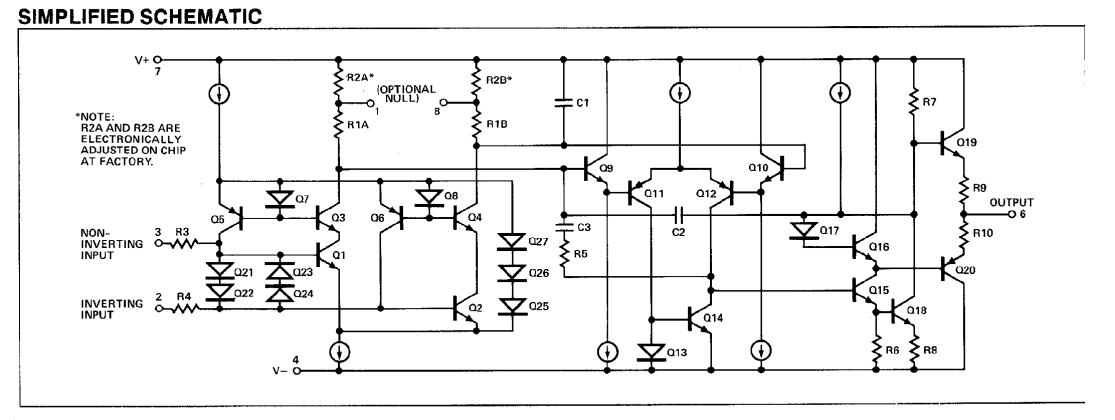

OP77AJ/883 simplified schematic
