Product Summary

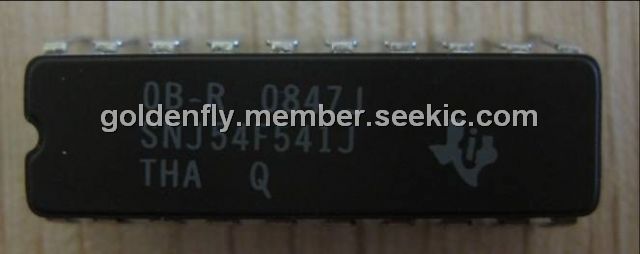

The SNJ54F541J is an octal buffer/line driver. It is ideal for driving bus lines or buffering memory address registers. The SNJ54F541J features inputs and outputs on opposite sides of the package to facilitate printed-circuit-board layout. The 3-state control gate is a 2-input AND gate with active-low inputs so that if either output enable (OE1 or OE2) input is high, all eight outputs are in the high-impedance state. The SNJ54F541J is characterized for operation over the full military temperature range of –55℃ to 125℃.
Parametrics
SNJ54F541J absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –1.2 V to 7 V; (3)Input current range: –30 mA to 5 mA; (4)Voltage range applied to any output in the disabled or power-off state: –0.5 V to 5.5 V; (5)Voltage range applied to any output in the high state:–0.5 V to VCC; (6)Current into any output in the low state: 96 mA; (7)Operating free-air temperature range:–55 to 125℃; (8)Storage temperature range: –65 to 150℃.
Features

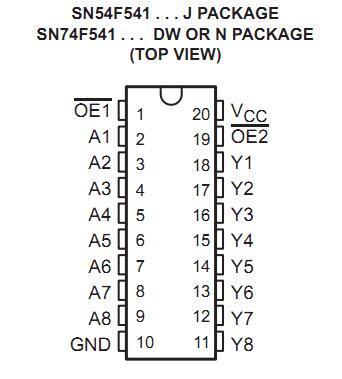

SNJ54F541J features: (1)3-State Outputs Drive Bus Lines or Buffer Memory Address Registers; (2)Data Flow-Through Pinout (All Inputs on Opposite Side From Outputs); (3)Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Plastic and Ceramic DIPs.
