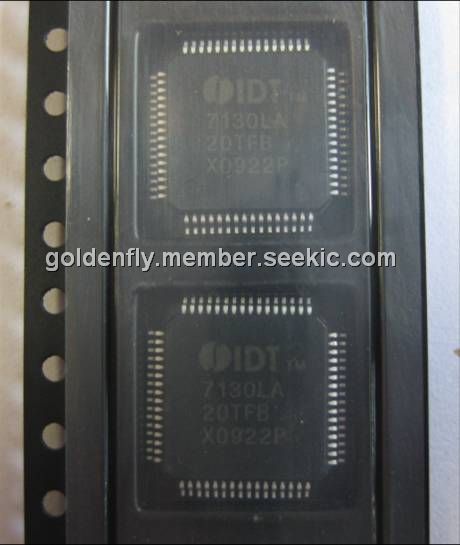

Product Summary
The IDT7130LA20TFB is a high-speed 1K x 8 Dual-Port Static RAM. The device is designed to be used as a stand-alone 8-bit Dual-Port RAM or as a MASTER Dual-Port RAM together with the IDT7140 SLAVE Dual-Port in 16-bit-or-more word width systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-or-more-bit memory system applications results in full-speed, error-free operation without the need for additional discrete logic. The IDT7130LA20TFB provides two independent ports with separate control, address, and I/O pins that permit independent asynchronous access for reads or writes to any location in memory. An automatic power down feature, controlled by CE, permits the on chip circuitry of each port to enter a very low standby power mode.
Parametrics
IDT7130LA20TFB absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: –0.5 to +7.0V; (2)TA, Operating Temperature: 0 to +70℃; (3)TBIAS, Temperature Under Bias: –55 to +125℃; (4)TSTG, Storage Temperature:–55 to +125℃; (5)IOUT, DC Output Current: 50mA.
Features
IDT7130LA20TFB features: (1)High-speed access: Military: 25/35/55/100ns (max.); Commercial: 25/35/55/100ns (max.); Commercial: 20ns 7130 in PLCC and TQFP; (2)Low-power operation; (3)MASTER IDT7130 easily expands data bus width to; (4)16-or-more-bits using SLAVE IDT7140; (5)On-chip port arbitration logic (IDT7130 Only); (6)BUSY output flag on IDT7130; BUSY input on IDT7140; (7)Interrupt flags for port-to-port communication; (8)Fully asynchronous operation from either port; (9)Battery backup operation–2V data retention (LA only); (10)TTL-compatible, single 5V ±10% power supply; (11)Military product compliant to MIL-STD-883, Class B; (12)Standard Military Drawing #5962-86875; (13)Industrial temperature range (–40 to +85℃) is available, tested to military electrical specifications.

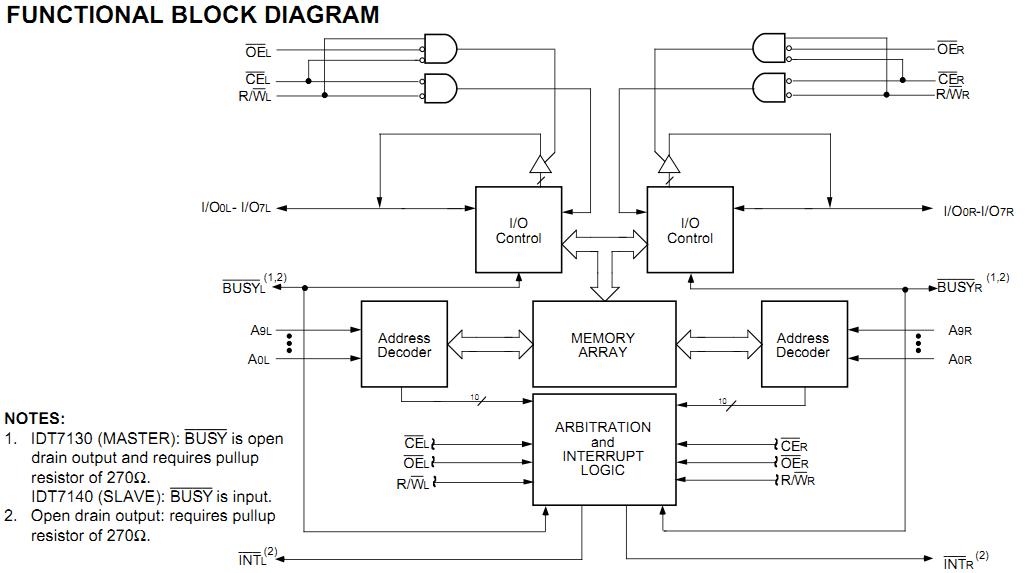

Diagrams
 |
