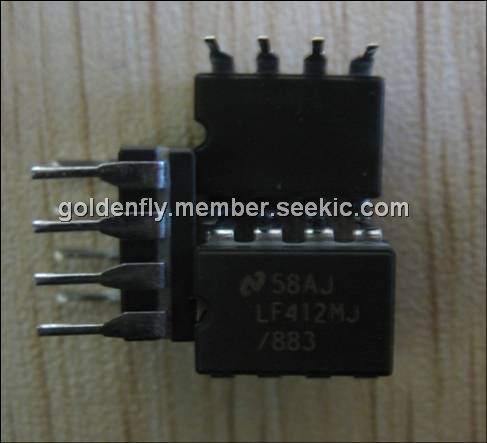

Product Summary

The LF412MJ/883 is a low cost, high speed, JFET input operational amplifier with very low input offset voltage and guaranteed input offset voltage drift. It requires low supply current yet maintain a large gain bandwidth product and fast slew rate. In addition, well matched high voltage JFET input devices provide very low input bias and offset currents. The LF412MJ/883 dual is pin compatible with the LM1558, allowing designers to immediately upgrade the overall performance of existing designs. The LF412MJ/883 may be used in applications such as high speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage and drift, low input bias current, high input impedance, high slew rate and wide bandwidth.

Parametrics

LF412MJ/883 absolute maximum ratings: (1)Supply Voltage:±18V; (2)Differential Input Voltage:±30V; (3)Input voltage Range: ±15V; (4)Output Short Circuit Duration:Continuous; (5)Tj max: 150℃; (6)θjA (Typical): 152℃/W; (7)Operating Temp. Range: (Note 6); (8)Storage Temp: -65℃≤TA≤150℃; (9)Range; (10)Lead Temp.(Soldering, 10 sec.): 260℃; (11)ESD Tolerance (Note 13): 1700V.

Features

LF412MJ/883 features: (1)Internally trimmed offset voltage: 1 mV (max); (2)Input offset voltage drift: 10 μV/℃ (max); (3)Low input bias current: 50 pA; (4)Low input noise current: 0.01 pA/Hz; (5)Wide gaibandwidth: 3 MHz (min); (6)High slew rate: 10V/μs (min); (7)Low supply current: 1.8 mA/Amplifier; (8)High input impedance: 1012Ω; (9)Low total harmonic distortio≤0.02%; (10)Low 1/f noise corner: 50 Hz; (11)Fast settling time to 0.01%: 2 μs.

Diagrams

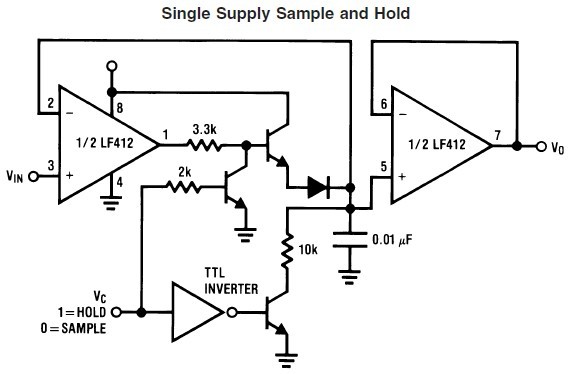

LF412MJ/883 Typical Application
