Product Summary
The MAX809TTRG is a cost-effective system supervisor circuit designed to monitor VCC in digital systems. It provides a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 10 sec of VCC falling through the reset voltage threshold. Reset is maintained active for a timeout period which is trimmed by the factory after VCC rises above the reset threshold. The MAX809TTRG has an active low RESET output. Both devices are available in SOT-23 packages.
Parametrics
MAX809TTRG absolute maximum ratings: (1)Power Supply Voltage (VCC to GND), VCC: -0.3 to 6.0 V; (2)RESET Output Voltage (CMOS): -0.3 to (VCC + 0.3) V; (3)Input Current, VCC: 20 mA; (4)Output Current, RESET: 20 mA; (5)dV/dt (VCC): 100 V/sec; (6)Thermal Resistance, Junction-to-Air, RθJA: 301℃/W; (7)Operating Junction Temperature Range, TJ: -40 to +105℃; (8)Storage Temperature Range, Tstg: -65 to +150℃; (9)Lead Temperature (Soldering, 10 Seconds) Tsol: +260℃; (10)ESD Protection: 2000V; (11)Latchup Current Maximum Rating: 200mA.
Features
MAX809TTRG features: (1)Precision VCC Monitor for 1.5 V, 2.5 V, 3.0 V, 3.3 V, and 5.0V Supplies; (2)Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps; (3)Four Guaranteed Minimum Power-On Reset Pulse Width Available (1 ms, 20 ms, 100 ms, and 140 ms); (4)RESET Output Guaranteed to VCC = 1.0 V; (5)Low Supply Current; (6)Compatible with Hot Plug Applications; (7)VCC Transient Immunity; (8)No External Components; (9)Wide Operating Temperature: -40 to 10℃; (10)Pb-Free Packages are Available.

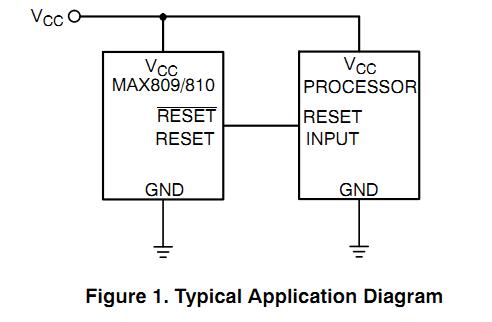

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX809TTRG |
ON Semiconductor |
Supervisory Circuits 3.08V uP Reset |
Data Sheet |
|
|
||||||||||||
