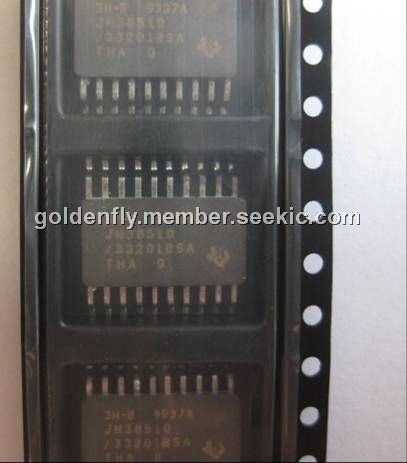

Product Summary
The JM38510/33201BSA is an octal buffer/driver with 3-state outputs. The JM38510/33201BSA is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Taken together with the F241 andF244, the JM38510/33201BSA provides the choice of selected combinations of inverting and noninverting outputs, symmetrical OE (active-low output-enable) inputs, and complementary OE and OE inputs.
Parametrics
JM38510/33201BSA absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –1.2 V to 7 V; (3)Input current range: –30 mA to 5 mA; (4)Voltage range applied to any output in the disabled or power-off state: –0.5 V to 5.5 V; (5)Voltage range applied to any output in the high state: –0.5 V to VCC; (6)Current into any output in the low state: 96 mA; (7)Operating free-air temperature range: –55 to 125℃; (8)Storage temperature range: –65 to 150℃.
Features
JM38510/33201BSA features: (1)3-State Outputs Drive Bus Lines or Buffer Memory Address Registers; (2)Package Options Include Plastic: Small-Outline (SOIC) and Shrink; Small-Outline (SSOP) Packages, Ceramic; Chip Carriers, and Plastic and Ceramic DIPs.

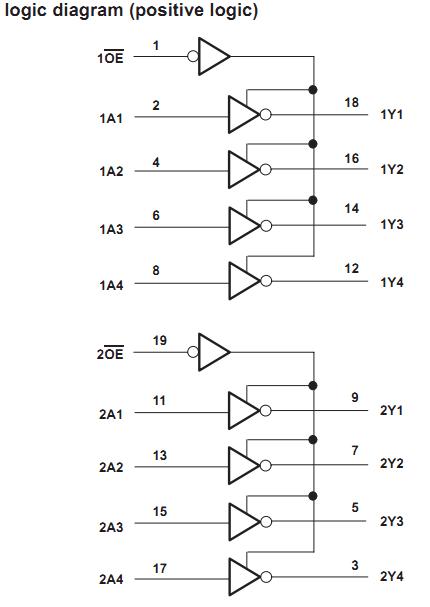

Diagrams
 |
