Product Summary

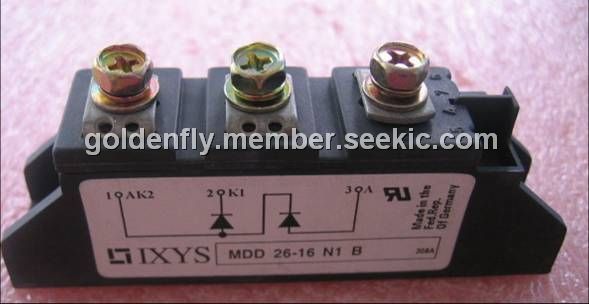

The MDD26-16N1B is a diode module. The applications of the device include supplies for DC power equipment, DC supply for PWM inverter, field supply for DC motors and battery DC power supplies.
Parametrics
MDD26-16N1B absolute maximum ratings: (1)IFRMS: 60A when TVJ = TVJM; (2)IFAVM: 36A when TC = 100℃; 180°sine; (3)IFSM: 650A when TVJ = 45℃; t = 10 ms (50 Hz), sine; 760A when VR = 0 t = 8.3 ms (60 Hz), sine; 580A when TVJ = TVJM t = 10 ms (50 Hz), sine; 630A when VR = 0 t = 8.3 ms (60 Hz), sine; (4)TVJ: -40 to +150℃; (5)TVJM: 150℃ max; (6)Tstg: -40 to +125℃.
Features
MDD26-16N1B features: (1)International standard package JEDEC TO-240 AA; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V~; (5)UL registered, E 72873.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MDD26-16N1B |
Ixys |
Discrete Semiconductor Modules 26 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
