Product Summary
The PS7801C-1A-F3 is a low output capacitance solid state relay containing a GaAs LED on the light emitting side (input side) and MOS FETs on the output side. An ultra small flat-lead package has been provided which realizes a reduction in mounting area of about 50% compared with the PS7801C-1A-F3. It is suitable for high-frequency signal control, due to its low C × R, super low output capacitance, and low off-state leakage current. The PS7801C-1A-F3 is suitable for Measurement equipment.
Parametrics
PS7801C-1A-F3 absolute maximum ratings: (1)Diode, Forward Current (DC), IF: 50 mA; Reverse Voltage, VR: 5.0 V; Power Dissipation, PD: 50 mW; Peak Forward Current, IFP: 1 A; (2)MOS FET, Break Down Voltage, VL: 30 V; Continuous Load Current, IL: 80 mA; Pulse Load Current (AC/DC Connection), ILP: 160 mA; Power Dissipation, PD: 250 mW; (3)Isolation Voltage, BV: 500 Vr.m.s; (4)Total Power Dissipation, PT: 300 mW; (5)Operating Ambient Temperature, TA: -40 to +85℃; (6)Storage Temperature, Tstg: -40 to +100℃.
Features

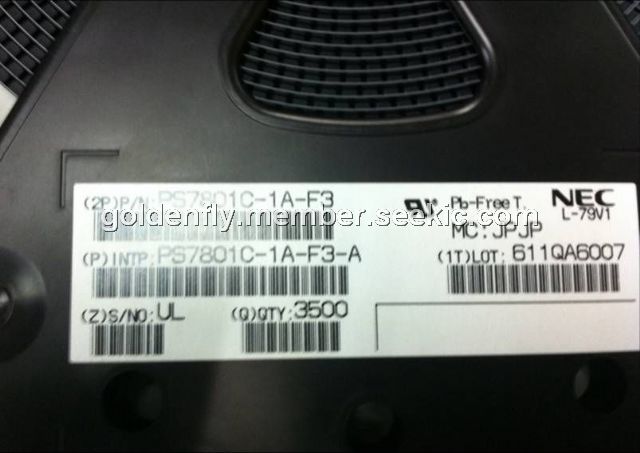

PS7801C-1A-F3 features: (1)Ultra small flat-lead package (4.2 (L) × 2.5 (W) × 1.85 (H) mm); (2)Super low output capacitance (Cout = 0.5 pF TYP.); (3)Low C × R (C × R = 6.5 pFΩ) ; (4)1 channel type (1 a output); (5)Designed for AC/DC switching line changer; (6)Low offset voltage; (7)Ordering number of taping product: PS7801C-1A-F3 (3 500 pcs/reel); (8)Pb-Free product; (9)Safety standards; (10)UL approved: File No. E72422.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS7801C-1A-F3-A |
CEL |
Solid State Relays 4pin SOP 1CH FormA 10 CxR SSR LWer Capa |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
PS7801-1A |
CEL |
Solid State Relays 1-Ch Normally Open |
Data Sheet |
Negotiable |
|
||||||||||||
|
PS7801-1A-A |
CEL |
Solid State Relays 1-Ch Normally Open |
Data Sheet |
|
|
||||||||||||
|
PS7801-1A-F3-A |
CEL |
Solid State Relays Low Capacitance 1-Ch |
Data Sheet |
|
|
||||||||||||
|
PS7801C-1A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
PS7801C-1A-A |
CEL |
Solid State Relays 4pin SOP 1CH FormA 10 CxR SSR LWer Capa |
Data Sheet |
|
|
||||||||||||
|
PS7801C-1A-F3-A |
CEL |
Solid State Relays 4pin SOP 1CH FormA 10 CxR SSR LWer Capa |
Data Sheet |
|
|
||||||||||||
