Product Summary

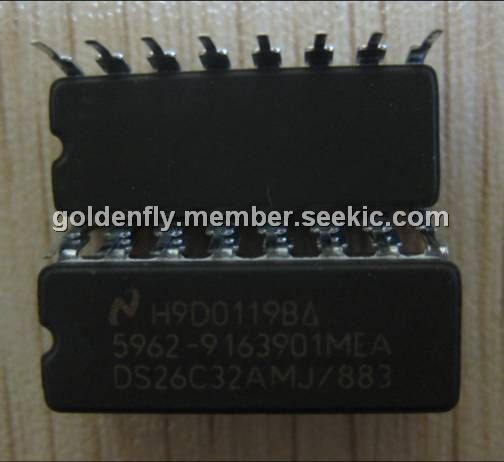

The 5962-9163901MEA is a quad differential line driver designed for digital data transmission over balanced lines. The 5962-163901MEA is compatible with EIA standard RS-422; however, one exception in test methodology is taken (Note 8). This enables the construction of serial and terminal interfaces while maintaining minimal power consumption. The 5962-9163901MEA accepts TTL or CMOS input levels and translates these to RS-422 output levels. This part uses special output circuitry that enables the drivers to power down without loading down the bus. This 5962-9163901MEA has enable and disable circuitry common to all four drivers. All inputs are protected against damage due to electrostatic discharge by diodes to VCC and ground.
Parametrics
5962-9163901MEA absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to 7.0V; (2)DC Input Voltage (VIN): -1.5V to VCC+1.5V; (3)DC Output Voltage (VOUT): -0.5V to 7V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±150 mA; (6)DC VCC or GND Current, per pin (ICC): ±150 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃.
Features
5962-9163901MEA features: (1)TTL input compatible; (2)Typical propagatiodelays: 6 ns; (3)Typical output skew: 0.5 ns; (4)Outputs will not load line wheVCC = 0V; (5)DS26C31T meets the requirements of EIA standard RS-422; (6)Operatiofrom single 5V supply; (7)TRI-STATE outputs for connectioto system buses; (8)Low quiescent current; (9)Available isurface mount; (10)Mil-Std-883C compliant.

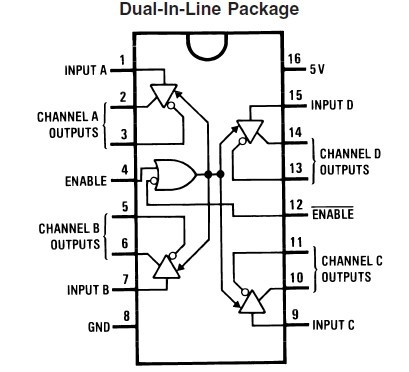

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 5962-9163901MEA |
National Semiconductor (TI) |
Buffers & Line Drivers |
Data Sheet |
|
|
||||||||||||
