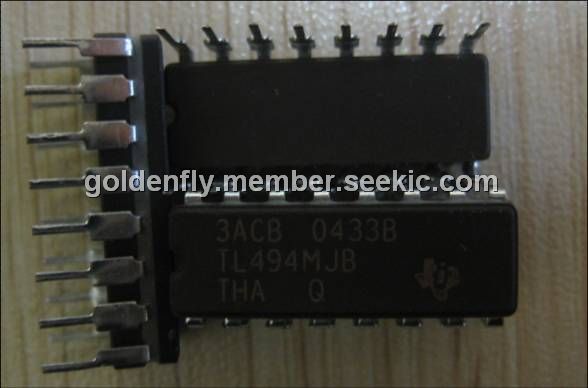

TL494MJB

Product Summary

The TL494MJB incorporates all the functions required in the construction of a pulse-width-modulation (PWM) control circuit on a single chip. Designed primarily for power-supply control, this device offers the flexibility to tailor the power-supply control circuitry to a specific application. The TL494MJB contains two error amplifiers, an on-chip adjustable oscillator, a dead-time control (DTC) comparator, a pulse-steering control flip-flop, a 5-V, 5%-precision regulator, and output-control circuits. The error amplifiers exhibit a common-mode voltage range from -0.3 V to VCC - 2 V. The dead-time control comparator has a fixed offset that provides approximately 5% dead time. The on-chip oscillator can be bypassed by terminating RT to the reference output and providing a sawtooth input to CT, or it can drive the common circuits in synchronous multiple-rail power supplies. The uncommitted output transistors provide either common-emitter or emitter-follower output capability. The TL494MJB provides for push-pull or single-ended output operation, which can be selected through the output-control function. The architecture of this device prohibits the possibility of either output being pulsed twice during push-pull operation. The TL494MJB is characterized for operation from 0℃ to 70℃. The TL494MJB is characterized for operation from -40℃ to 85℃.

Parametrics

TL494MJB absolute maximum ratings: (1)VCC Supply voltage: 41 V; (2)VI Amplifier input voltage: VCC + 0.3 V; (3)VO Collector output voltage: 41 V; (4)IO Collector output current: 250 mA; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260 ℃; (6)Tstg Storage temperature range: -65 to 150 ℃.

Features

TL494MJB features: (1)Complete PWM Power-Control Circuitry; (2)Uncommitted Outputs for 200-mA Sink or Source Current; (3)Output Control Selects Single-Ended or Push-Pull Operation; (4)Internal Circuitry Prohibits Double Pulse at Either Output; (5)Variable Dead Time Provides Control Over Total Range; (6)Internal Regulator Provides a Stable 5-V Reference Supply With 5% Tolerance; (7)Circuit Architecture Allows Easy Synchronization.

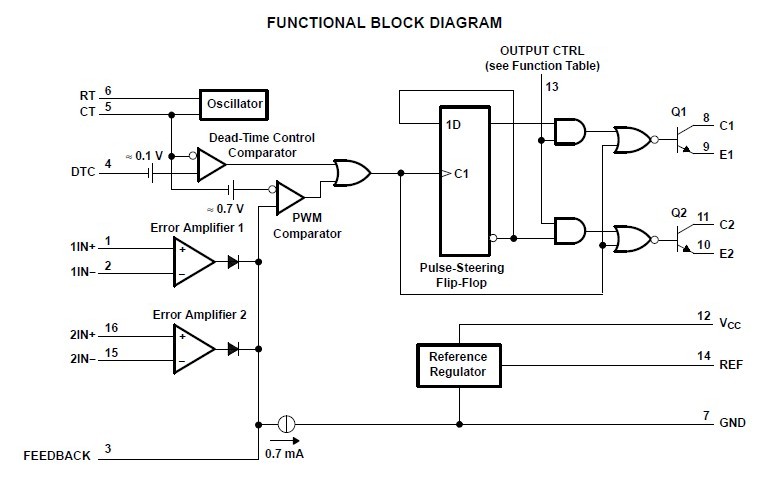

Diagrams
